- Dual Port DC Fast Charger
- 16-Feet Cord (CCS1 or NACS/Tesla)
- Parallel Charge Mode (60 kW per Port)
- 10” Touchscreen Display with RFID Reader
- Optional Credit Card Reader
- Configurable Output Power Settings
- Emergency Stop Button
- UL Listed, ETL and CE Certified

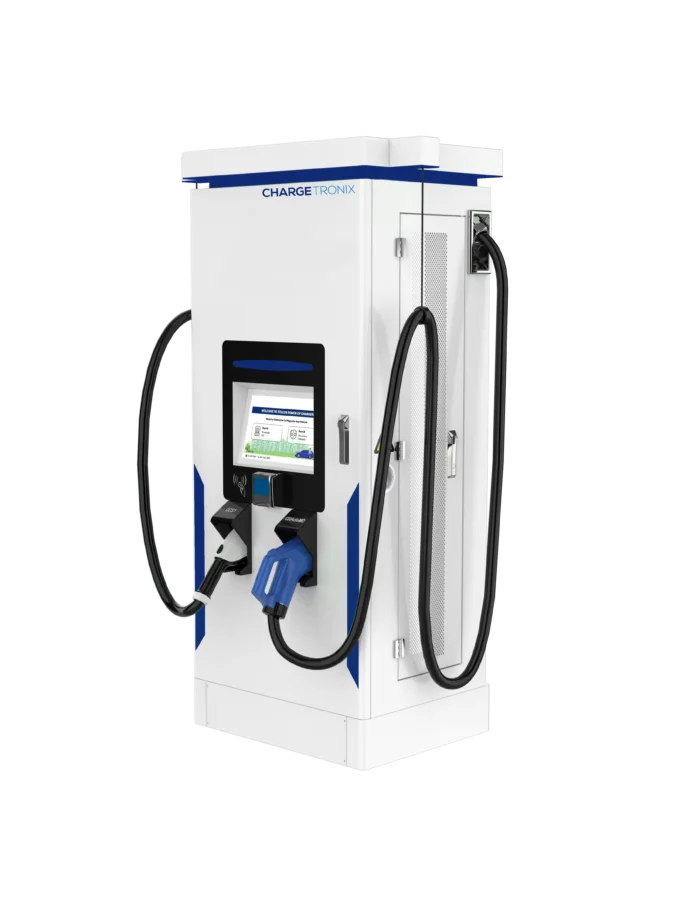

ChargeTronix 120 kW DC Fast Charger
$57,000.00
Out of stock
Ask for product
The ChargeTronix 120 kW Fast DC Charger is a powerful and reliable charging solution suitable for a wide range of applications, including commercial, retail, hospitality, public charging, and fleet operations. The ground-mounted charger can be equipped with a CCS1 or NACS/Tesla charging connector, allowing it to charge most electric vehicles. Offering the ideal balance of size and power, it delivers up to 200 amps and 1000 volts of output and adds approximately 347 miles of range in one hour. The DC charger features a 10-inch LCD touchscreen display with an integrated RFID and credit card reader (optional), enhancing the EV charging experience by presenting clear instructions, configurable output power settings, and real-time feedback during the charge. A Parallel Charge Mode allows charging two EVs simultaneously (30 kW per EV). This charger is available in 60 kW – 360 kW modifications. To ensure maximum safety, the charging station has an Emergency Stop Button that immediately halts all charging activity when activated. Its integrated climate control ensures optimal performance, even under challenging weather conditions. The ChargeTronix 120 kW Fast DC Charger is UL-listed, carries ETL and CE certifications, and has a 24-month manufacturer warranty (parts only).
Specifications
| Weight | 840 lbs |
|---|---|
| Dimensions | 29 × 26.5 × 72 in |
| Product Number | TP5-120-480 |
| Input | 480VAC (3P+N+PE), 60Hz |
| Output Voltage | 150-1000VDC |
| Output Current | 0 to 200A |
| FLA || Breaker Rating | 120A, 200A |
| Connectors | CCS1 or NACS/Tesla |
| Parallel Charge Mode | 60 kW per Port |
| Efficiency | ≥94% at nominal output power |
| Power Factor | > 0.98 |
| Display | 10’’ Touchscreen |
| Access Control | RFID : ISO/IEC 14443A/B, Credit Card Reader (Optional) |
| Metering | DC kWh meter per each connector |
| Operating Temperature | -22°F to 131°F (-30°C to 55°C) |
| Altitude | 6600ft(2000m) |
| Working || Storage Humidity | ≤ 95% RH, ≤ 99% RH (Non-condensing) |
| Dimensions (L x D x H) | 29’’ x 26.5’’ x 72’ |
| Protective Class | NEMA 3S (IP54), IK10 |
| Cooling system | Air cooling fans |
| Weight | 840 lbs |
| DC Charge System | Mode 4 – IEC-61851, ISO-15118, DIN 70121 Mode 4 – CHAdeMO 0.9, 1.0 |
| Charging cable | 16ft, Cable Retractor Included |
| Communication || Protocol | Ethernet, 4G/WiFi, OCPP 1.6J |
| Insulation (input-output) | >2.5 kV |
| Electrical Safety: GFCI | RCD 20 mA Type A |
| Electrical Safety: Surge Protection | 20 kA |
| Electrical Safety General | Over Voltage, Under Voltage, Over Current, Missing Ground |
| Electrical Safety: Output Short | Output power disabled when output is short circuited |
| Electrical Safety Temperature | Temperature Sensors @ Charge Coupler and Power Electronics |
| Emergency Stop | Emergency Stop Button Disables Output Power |
| Compliance | UL Listed, ETL and CE Certified |
| Warranty | 24 months |
